      OMEN RACE ENGINES



Race Modified Zenoah G260, G300 and G320 PUM Engines



  All OMEN RACE engines feature the following modifications:

   # Inlet Port Timing : Increasing the inlet timing allows the engine to pull more fuel and air in, in turn creating more crankcase pressure. This is a critical factor in gaining bottom end horse power.

   # Transfer Ports : Now we have the inlet port working well, we go to work on the transfer system. Basically we re-shape the transfer ports to give the fuel and air the best chance of getting to the combustion chamber as fast and efficiently as possible.

   # Compression : Raising the compression plays an important part in gaining the necessary horse power to give you that winning edge. We do this by machining the base of the barrel down, making the combustion chamber smaller and reducing the squish band.

   # Exhaust Port Timing : Exhaust timing is something that can really dictate the way your engine performs; increasing it changes the position of the power curve through the rev range, therefore increasing it the right amount is where the answer lies.

   # Piston Weight :  We machine the under side of the piston to make it as light as possible but keeping it reliable, also eyebrow the side of the piston on the transfer port sides to help with transfer. The 231 piston weighs around 19 grams and the 260 piston around 24 grams. This helps to let the engine rev up quicker. We also shape the piston skirt on the inlet side to give it a more progressive opening and closing system.

      The Result

Over the past years OMEN RACE ENGINES have come up with an extremely fast and ultra reliable package that compares with any modified Zenoah engine on the market today.

During this time Omen Race Engines has had some great results on the racing scene plus SAW time trials and quickly become a force to be reckoned with throughout Australia and world wide.

"Multiple Class winner at the 2014 & 2015 Australian Nationals and set many new 2014 Australian SAW speed records"



                 Visit Personal Currency Assistant™ to convert Australian Dollars to your Currency.

All Prices listed are in Australian Dollars and subject to change without notice.  Any sale delivered to an address within Australia must include 10% GST (Tax).   All export sales to overseas countries are GST (Tax) free.

IN STOCK

Omen Race Modified Zenoah G260PUM with WT-257 Carb

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

The Zenoah G260PUM (25.4cc) marine engine features an improved cylinder design with 4 transfer ports, high rpm piston with a thin 1.0 mm single ring design, new improved combustion chamber shape that use a compact 10 mm spark plug. Includes genuine Walbro WT-257 Carb.

bullet

Bore: 34.0 mm

bullet

Stroke: 28.0 mm

bullet

Displacement: 25.4 cc



Australian Residents:  $ 469.00 (Inc GST)   Export Price: AU$ 427.00

IN STOCK

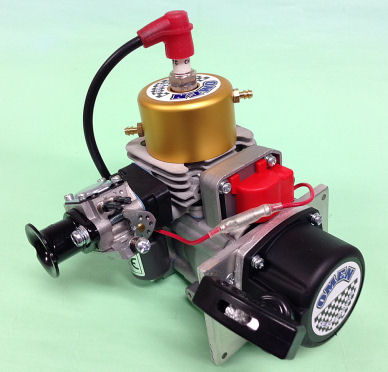

Omen Race Modified Zenoah G300PUM with WT-1048 Carb

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

The Zenoah G300PUM (29.5cc) marine engine has the new Zenoah +1.0mm crankshaft factory installed.

Features an improved cylinder design with 4 transfer ports, high rpm piston with a thin 1.0 mm single ring design, new improved combustion chamber shape that use a compact 10 mm spark plug, genuine Walbro WT-1048 big bore carburetor, velocity stack plus E/Z Starter for effortless starting.

bullet

Bore: 36.0 mm

bullet

Stroke: 29.0 mm

bullet

Displacement: 29.5 cc

Normal price $489.00

Australian Residents:  $ 459.00 (Inc GST)   Export Price: AU$ 418.00

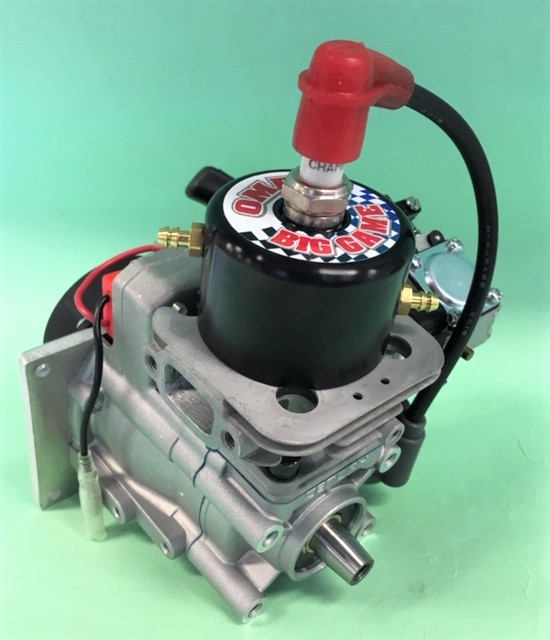

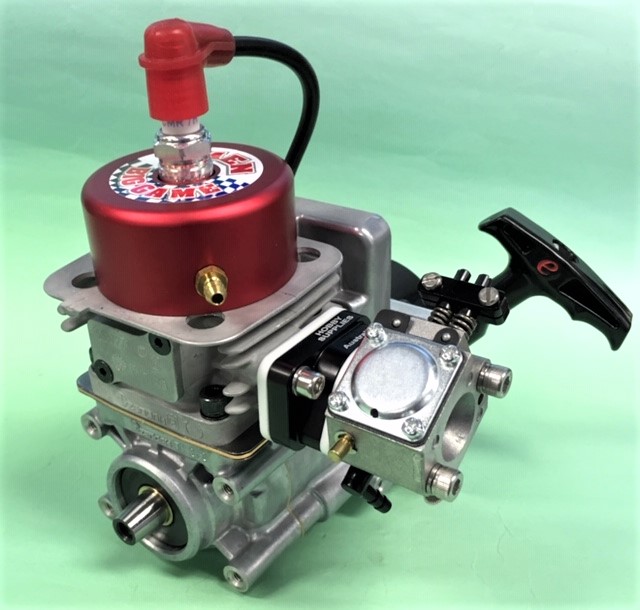

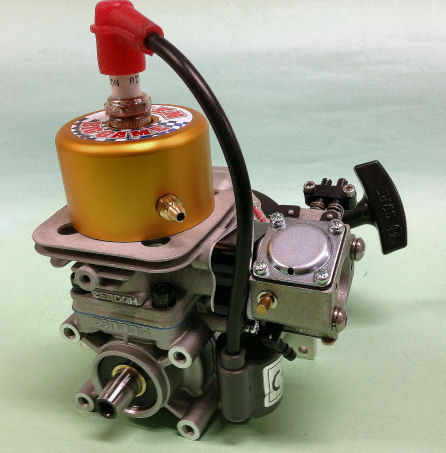

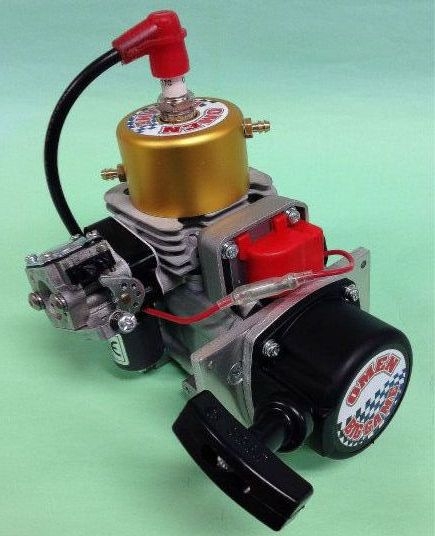

Omen "BIG GAME" Full Race Modified Zenoah G300PUM with WT-1048 Carb

This engine is strictly limited production and may have a short waiting time for supply

The new Omen "BIG GAME" full race modified marine engine features the same high performance port work as the original Omen Race engine, but has the added extras of a Knife Edged Crankshaft, Lightened Flywheel, Zero Drag crankshaft seals, Alloy Inlet Manifold and a Carb needle clamp.

With a good tune pipe and hull setup this engine can have you standing on the top step at the end of the day come trophy time, or give you that extra punch down the river to get you in front of your mates to gain bragging rights.

The Zenoah G300PUM (29.5cc) marine engine has the new Zenoah +1.0mm crankshaft factory installed.

Features an improved cylinder design with 4 transfer ports, high rpm piston with a thin 1.0 mm single ring design, new improved combustion chamber shape that use a compact 10 mm spark plug, genuine Walbro WT-1048 big bore carburetor, velocity stack plus E/Z Starter for effortless starting.

bullet

Bore: 36.0 mm

bullet

Stroke: 29.0 mm

bullet

Displacement: 29.5 cc



Australian Residents:  $ 595.00 (Inc GST)   Export Price: AU$ 541.00

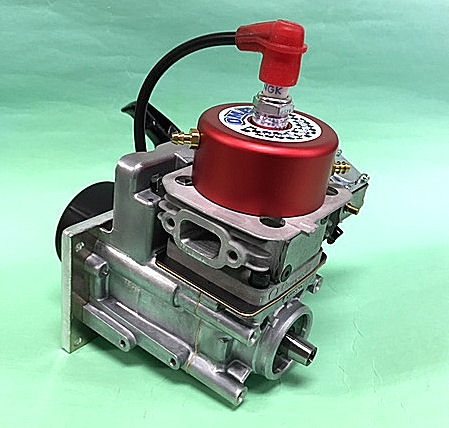

Omen Race Modified Zenoah G320PUM with WT-1107 Carb

The 2016 full production version has a new design crankshaft & conrod assembly, two crankshaft bearings on the flywheel side and a new seal on the drive side.

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

The long-awaited G320PUM. This performance beast features a 38mm bore and 28mm stroke for 31.8cc's of incredible performance. New for 2015. Features a new red anodized water jacket, improved pull start handle and lots more !

Please note this engine does not fit G231/300PUM engine mounts

Engine Specs:
Displacement: 31.8cc (28mm stroke, 38mm bore)
Carb: Walbro WT-1107.
Spark Plug: NGK CMR7H
Starter System: E/Z Recoil Starter

Receive FREE Zenoah hand towel and stickers with your G320PUM

Australian Residents:  $ 515.00 (Inc GST)   Export Price: AU$ 469.00



Omen Race Modified Zenoah G320PUM with WT-1048 Carb

The 2016 full production version has a new design crankshaft & conrod assembly, two crankshaft bearings on the flywheel side and a new seal on the drive side.

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

The long-awaited G320PUM. This performance beast features a 38mm bore and 28mm stroke for 31.8cc's of incredible performance. New for 2015. Features a new red anodized water jacket, improved pull start handle and lots more !

Please note this engine does not fit G231/300PUM engine mounts

Engine Specs:
Displacement: 31.8cc (28mm stroke, 38mm bore)
Carb: Walbro WT-1048.
Spark Plug: NGK CMR7H
Starter System: E/Z Recoil Starter

Receive FREE Zenoah hand towel and stickers with your G320PUM

Australian Residents:  $ 520.00 (Inc GST)   Export Price: AU$ 473.00



IN STOCK

Omen Race Modified Zenoah G260PUM Cylinder Kit

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

Includes Omen Race Modified genuine Zenoah factory G260PUM 4-bolt 34mm 25.4cc cylinder, 34 mm piston, 34mm piston ring, water jacket o-rings, cylinder gasket, piston c-clips and piston washers.



Export Price: AU$ 236.00    Currency Converter  Australian Residents:  $ 259.00 (Inc GST)

IN STOCK

Omen Race Modified Zenoah G300PUM Cylinder Kit

Includes modified intake, transfer & exhaust ports plus raised compression and lightened piston  (See top of page for details)

Includes Omen Race Modified genuine Zenoah factory G300PUM 4-bolt 36mm 28.5cc big bore cylinder, 36 mm piston, 36mm piston ring, gold anodized water cooling jacket, water jacket o-rings, water jacket screws, cylinder gasket, piston c-clips, piston bearing, piston washers and wrist pin.



Export Price: AU$ 241.00    Currency Converter  Australian Residents:  $ 265.00 (Inc GST)

                                    ZENOAH G231/260/290/300 PUM Marine Engine Measurements
