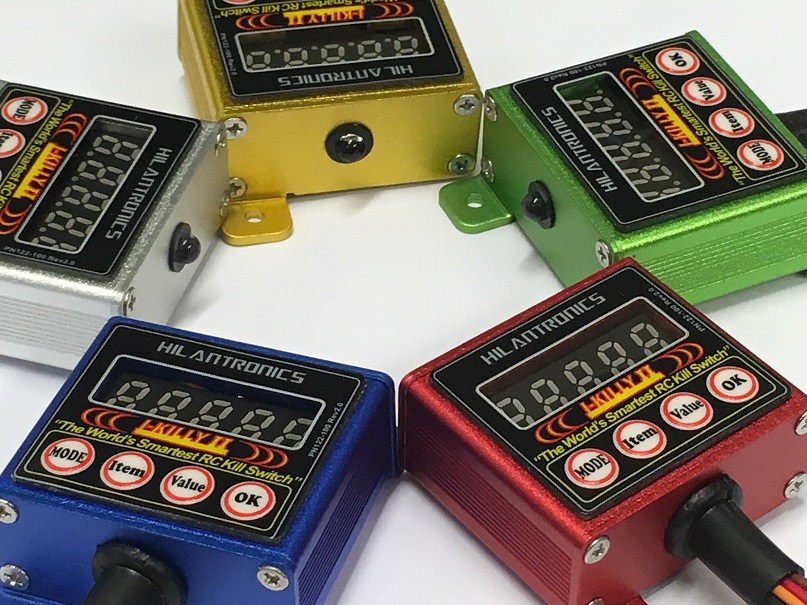

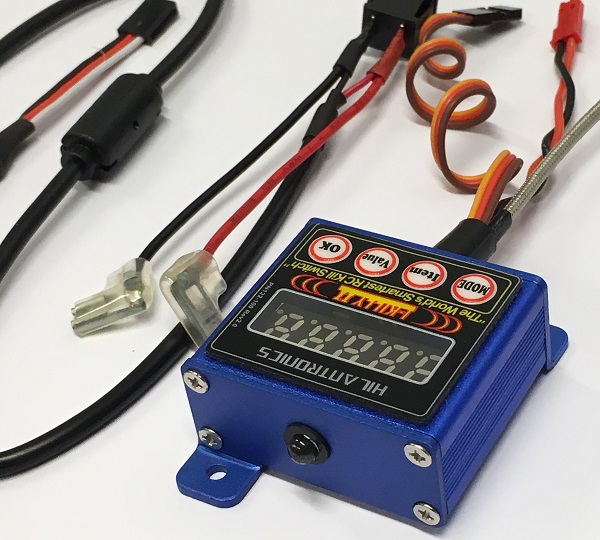

HiLantronics I-Killy-II (Programmable)

I-KILLY II - The 2nd generation of RC Engine Kill switch that redefines the safety and protection of your vehicle from running away and protect the engine from over heating. With built in display that shows the switches status, battery charge level ,engine temperature and engine’s RPM. State of the art technology breaking all barriers for generations to come in large scale RC. Beautifully Designed. Anodised Aluminium casing with 5 colours to choose from. Light weight and compact. Shielded stainless steel braiding thermocouple temperature sensor. Super Bright Bicolour status LED.
User friendly, can easily be programmed on the fly by the onboard keypad.

Features Include:

On board 0.32" 5 digital segment display

On board keypad

On board Battery Voltage Meter

Selectable 2, 3, 4+ channel radios

Adjustable glitch sensitivity

Adjustable low battery voltage cutoff (3.6V to 9.9V)

High Temperature engine shut down

Tachometer for displaying engine’s RPM

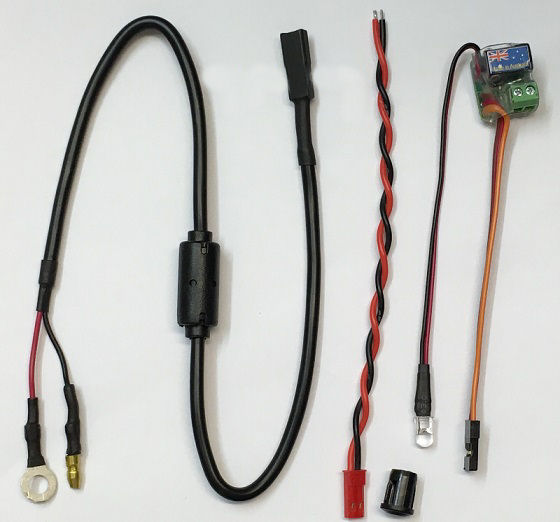

HiLantronics RCEKS-5GK Marine

RCEKS-5GK Marine - The 5th Generation of the 2-stroke RC engine kill switch for marine engines. Designed and made in Australia. With new updated firmware and wider operating voltage. It works with most 3 & 4 channel radios. RCEKS-5GK will automatically kill the boat engine if you have a low battery, radio glitch, lose connection, or power loss. You can also kill the engine anytime you want via the transmitter's channel switch. It kills the engine by using a mechanical relay that gives a full electrical isolation.

The kit comes with:

1 x EMF noise filtered cable with quick disconnect plug

1 x Remote super bright red LED indicator so the status signals can be seen externally. To mount the external LED on to your receiver box, drill an 8mm hole then slide the LED through from the inside of the box and insert the LED into the LED clip then push the clip with the LED in the hole until it stops.

LED Signal Status:

- Flashing: No Radio Signal

- ON: Engine On (or Ready to Start)

- OFF: Engine Off

- Flashing/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:

- Operation Voltage on the receiver: 4.0 Volts DC to 8.0 Volts DC

- Relay Voltage Max: 125VAc, 24Vdc

- Contact Relay Current DC Max : 1A

- Relay Coil Resistance : 167 Ohm

HiLantronics Micro1T (Programmable)

Micron1T - the next generation of Programmable RC Engine Kill Switch for 2-stroke gas engine. Designed and made in Australia, it works with most 2, 3 & 4+ channel radios and very easy to setup. With adjustable low battery voltage cutoff, and glitch sensitivity. Micron1T will automatically kill the engine if you have a low battery, radio glitch, lose connection, or power loss. You can also kills the engine anytime you want via the transmitter's channel switch when used with the 3 or 4 channel radios. It kills the engine by using a mechanical relay that gives a full electrical isolation.

The kit comes with a prewired EMI filtered ignition cable with quick disconnect plug, 1 x Futaba Y lead and a remote super bright red LED indicator so the status signal can be seen externally. To mount the external LED on to your receiver box, drill an 8mm hole then slide the LED through from the inside of the box and insert the LED into the LED clip then push the clip with the LED in the hole until it stops.

Features Include:

Selectable  2, 3, 4+ channel radios

Adjustable glitch sensitivity

Adjustable low battery voltage cutoff (3,4,5 or 6V cutoff)

LED Signal Status:

Flashing - No Radio Signal

ON: Engine On (or Ready to Start)

OFF: Engine Off

Flashing/Off/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:

Operation Voltage on the receiver: 3.0 Volts DC to 9.0 Volts DC

Relay Voltage Max: 125VAc, 60Vdc

Contact Relay Current DC Max : 1A

Relay Coil Resistance: 91 Ohm

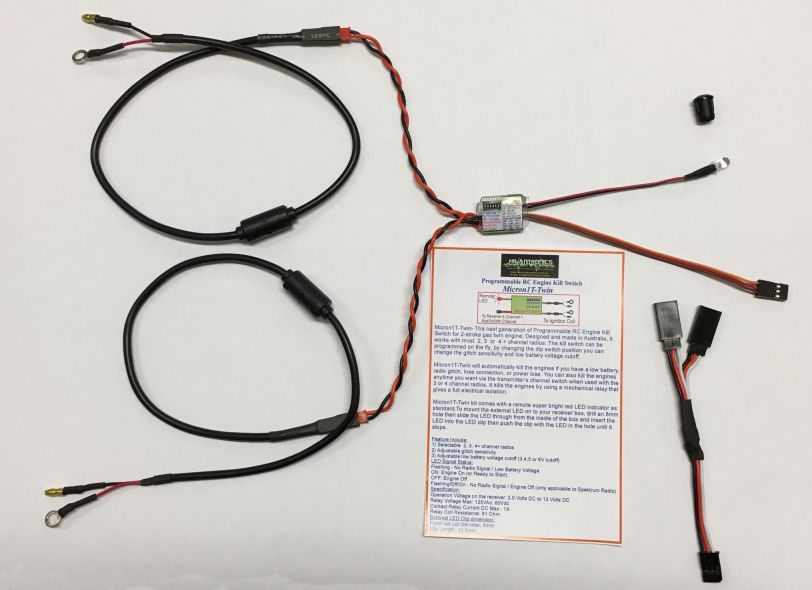

HiLantronics Micro1T-TWIN (Programmable)

Micron1T-TWIN  (For twin engine installations) - The next generation of Programmable RC Engine Kill Switch for 2-stroke gas engines. Designed and made in Australia, it works with most 2, 3 & 4+ channel radios and very easy to setup. With adjustable low battery voltage cutoff, and glitch sensitivity. Micron1T will automatically kill the engine if you have a low battery, radio glitch, lose connection, or power loss. You can also kills the engine anytime you want via the transmitter's channel switch when used with the 3 or 4 channel radios. It kills the engine by using a mechanical relay that gives a full electrical isolation.

The kit comes with a prewired EMI filtered ignition cable with quick disconnect plug, 1 x Futaba Y lead and a remote super bright red LED indicator so the status signal can be seen externally. To mount the external LED on to your receiver box, drill an 8mm hole then slide the LED through from the inside of the box and insert the LED into the LED clip then push the clip with the LED in the hole until it stops.

Features Include:

Selectable  2, 3, 4+ channel radios

Adjustable glitch sensitivity

Adjustable low battery voltage cutoff (3,4,5 or 6V cutoff)

LED Signal Status:

Flashing - No Radio Signal

ON: Engine On (or Ready to Start)

OFF: Engine Off

Flashing/Off/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:

Operation Voltage on the receiver: 3.0 Volts DC to 9.0 Volts DC

Relay Voltage Max: 125VAc, 60Vdc

Contact Relay Current DC Max : 1A

Relay Coil Resistance: 91 Ohm
